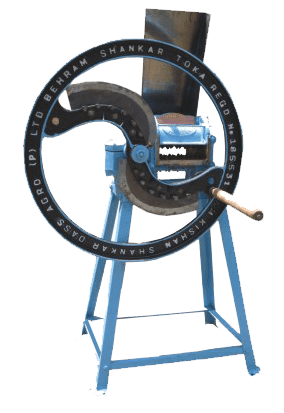

HAND CUM POWER DRIVEN CHAFF-CUTTER MACHINE
The Shenker Brand (Regd. No. 165531) chaff-cutter come into basic designs. i.e. The Ball Bearing type incorporating two anti friction bearing size 6206 and 6204 -or- the sada version meaning the cast iron bush type (Without Bearing).The rising mouth have two different types of tensioners. both equally efficient and available in either the Ball Bearing or sada version. Both the chaff-cutter heads and mounted on strong steel legs with forged feet. The rising mouth is 8.25. with two feeding rollers which are driven by a warm and two gears that are tasted from machined patterns enabeling smooth operation and reducing excessive friction.
The machine is also available with Ordinary Wheel & Patta Wheel
Mounted on steel legs and braces, with forged feet. makes the machine easily bolted to the floor.
Width of rising mouth 8.25 & 8.50
Diameter of Fly -Wheel 32″.42″ or 48″ (as desired or applicable)
Worm & Gear are made a Machined-Pattern enabling the operator to drive smoothly and keep the machine away from excessive friction.
The machine is supplied with Parnala. Blades. Handle. and Nut Bolt
Output per hour(average)
- Green Fodder”… 260 to 300 kgs.
- Dry Fedder”200 to 250kgs Further inquiries in the
Trades are always solicited on application.
Phatti type Hand-Cum Power Drien Machine is also supplied by us Machine is supplied with Parnala. Blades. Handle. Spanners & Nut Bolt Fitting.
The Mouth (Dandral) of Mach (Chaff Cutter) is grinded on an automatic grinding machine.
Product Specifications:
| Kinds of Worm Thread On both Ends | Number of Gear Teeth | Chaff Length |
|---|---|---|
|
Single & Double Thread |
11 |
5/18" to 11/4 |
|
Double Thread |
15 |
5/16" to 7/8" |
|
Single Thread |
11 |
5/8" |
|
Double Thread |
13 |
1/2" |
|
Double Thread |
15 |
7/16" |
