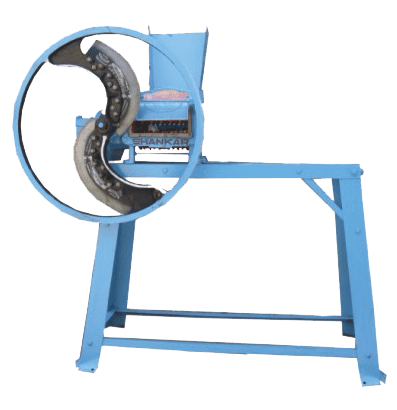

V. BELT CHAFF-CUTTER MACHINE

The V-Bell type Chaff cutter machine 3 Rulla manufactured incorporation edification bearing size 6207 and 6206. The using mouth is 9″ with three feeding rollers which are driven bya worm and three feeding rollers which are drvien by a worm & three gear neatly covered. by an oil box for greater efficiency and longer life.The special feature of this machine is that the V-belt can be easily mounted on wheel desired to be driven by motor power or can be driven by manual power. The motor stand is also fitted on the machine to operate machine with power.

Optional

This machine can also be supplied with 2 Roller.

Silent Features

The Rising Mouth 9″

The Mouth (Dandral) of Mach (Chaff Cutter) is grinded on an automatic grinding machine.

The Output:

Green Feeder: 2.75Ton

Dry Feeder:3.25Ton

The machine is supplied with Spanners. Nut & Bolts, Handle & Blades

Product Specifications:

Kinds of Worm Thread On both Ends Number of Gear Teeth Chaff Length
Single & Double Thread
11
5/18" to 11/4
Double Thread
15
5/16" to 7/8"
Single Thread
11
5/8"
Double Thread
13
1/2"
Double Thread
15
7/16"
